1 - PERSONALIZATION
It is possible to personalise the battery pack canister. Maximum designation length 85 mm, height 20 mm.
2 - BATTERY PACKS CANISTERS
3 types of canisters with lithium-ion batteries with a capacity: 13.8 Ah, 24.15 Ah, 41.4 Ah. Battery packs made from specially selected Panasonic Li-Ion cells, arranged in 3S configuration providing compatibility with lighting systems and heating systems for dry suits. All packs have UN38.3 certificate defining packs as safe for transport.

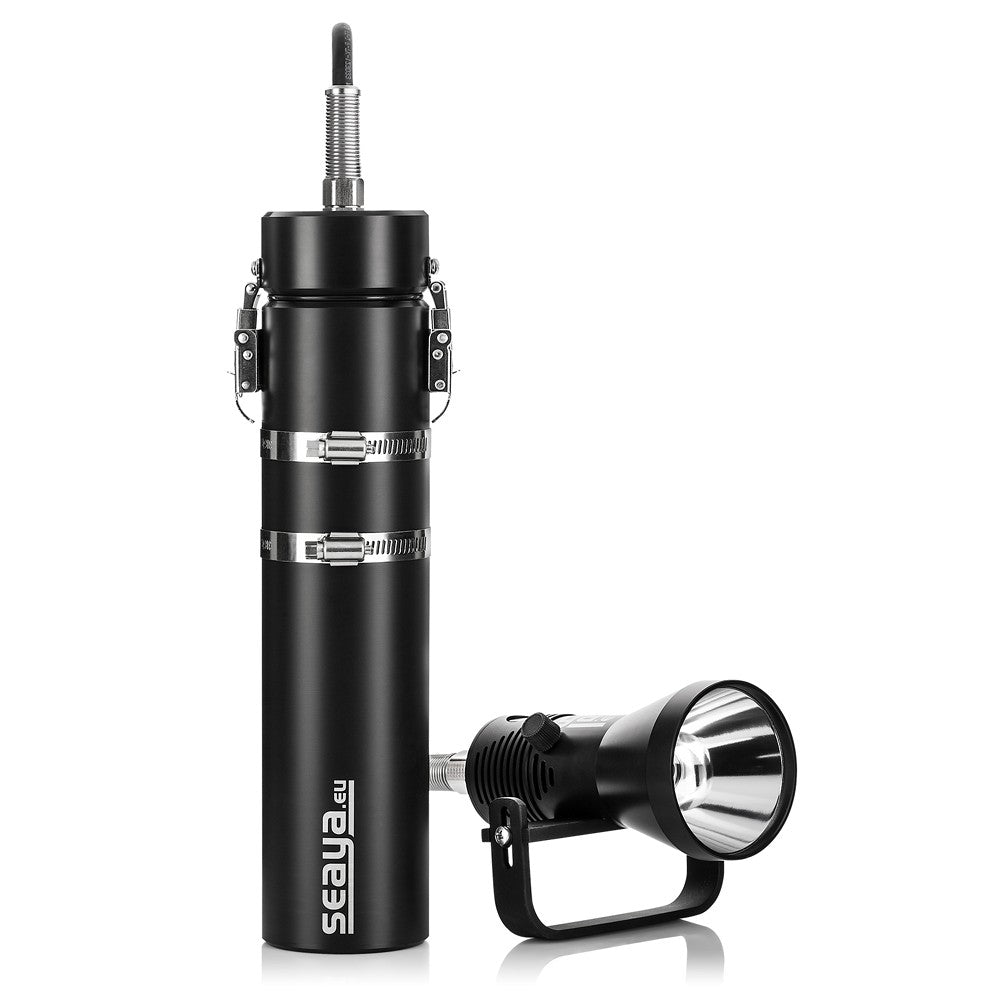

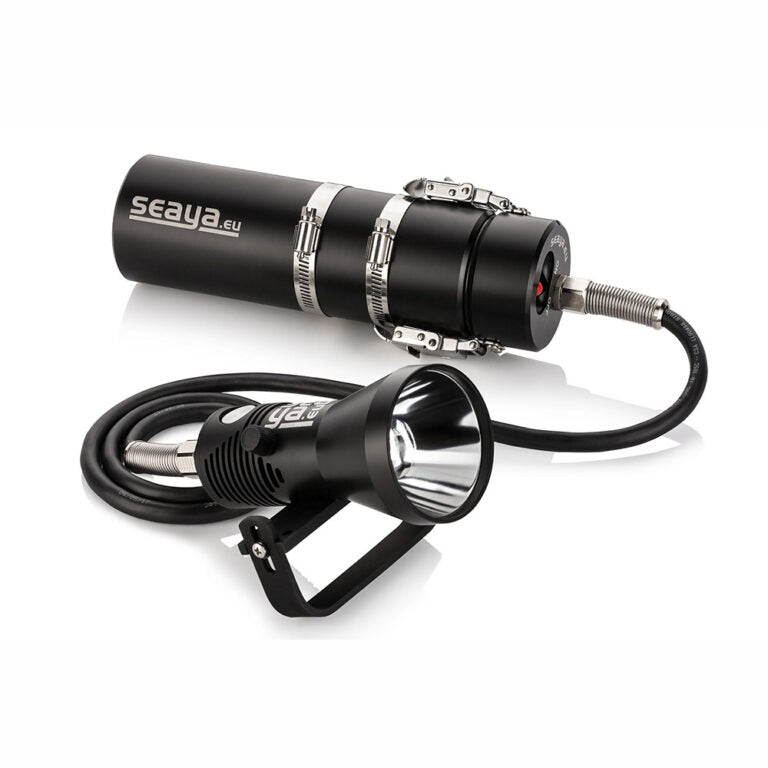

3 - BACKMOUNT OR SIDEMOUNT CONFIGURATION
The modularity of canisters design provides interchangeable use of canister’s lids. In BACKMOUNT configuration with cable outlet from the top and SIDEMOUNT with cable outlet on the side lid of the canister (only for capacity 13.8 Ah and 24.15 Ah). Canisters with 41.4 Ah Li-Ion battery packs are made only in BACKMOUNT configuration.
4 - CLASSIC OR PIEZO SWITCH
Two types of switches to choose from: classic toggle or piezoelectric push button. CLASSIC toggle switch is characterized by a well-known condition (ON-OFF) of switch specified by the direction of lever toggle. Hermetic lever switch cover is made of very durable silicone, with additional internal sealing providing greater protection. Especially recommended for use with heating systems. Compact PIEZO push button switch has a high resistance to mechanical damage and long service life. Quick and easy to operate, even with thick gloves.
5 - SINGLE OR DUAL OUTPUT
13.8Ah and 24.15Ah Li-Ion battery pack canisters are available with one or two outputs with one CLASSIC toggle switch. 41.4 Ah Li-Ion battery pack canisters are available with one output (one CLASSIC toggle switch or one PIEZO push button switch) or with two outputs (two CLASSIC toggle switches or two PIEZO push button switches).

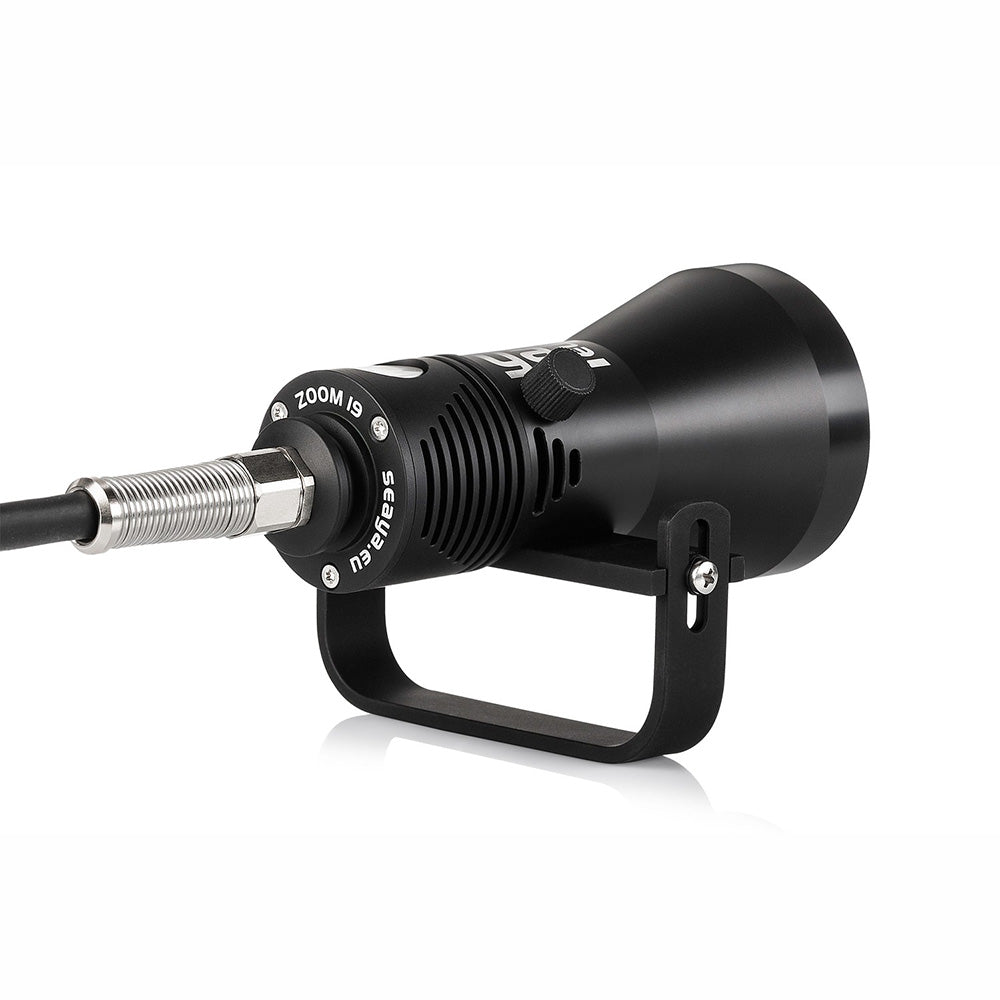

6 - METAL CABLE GLAND
A brass, nickel-plated cable gland with a bend protection made of stainless steel provides adequate sealing of the cable within the light head and the canister lid. It provides top performance in terms of mechanical durability and it protects the cable from breaking in the clamping point.
7 - FLEXIBLE CABLE STANDARD OR E/O
Cables for use in an underwater environment with high mechanical strength made of TPE technology (Thermoplastic Elastomer) combining features of the chemical resistance of PVC and flexibility of rubber. Extremely resistant to fracture maintain their flexibility over a wide temperature range. They are available in STANDARD version and optional E/O version allowing to disconnect cables under water.
8 - RESISTANT REFLECTOR
Specially designed aluminum reflector for the ZOOM light head in the production process was subjected to specialized processing, due to which it is resistant to underwaterwater environment conditions.

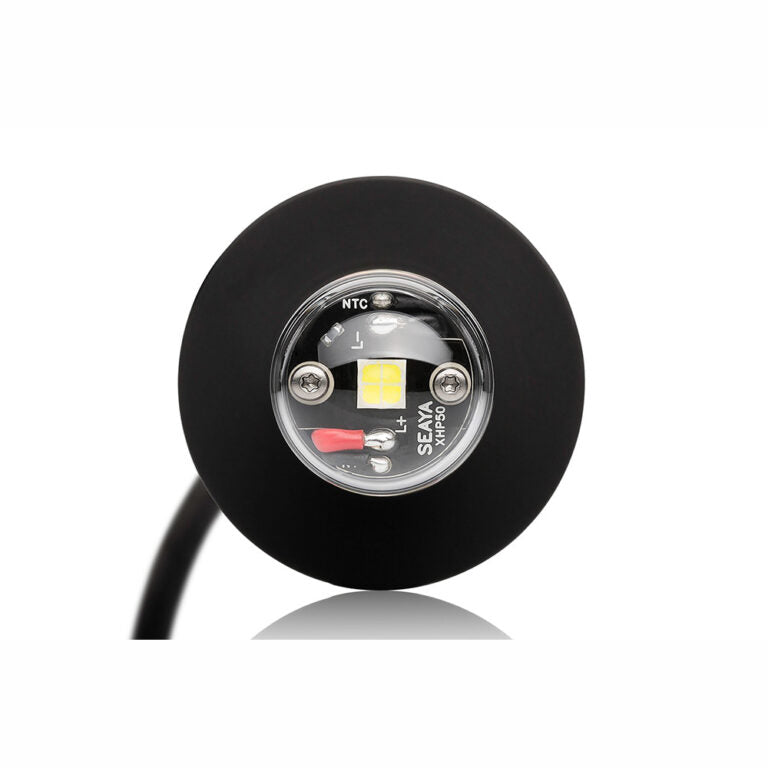

9 - CREE XHP50 LED PANEL
Used in the 19W ZOOM LED light head a single, high power XHP50 CREE® LED, controlled by dedicated electronics, generates light with a maximum luminance of 2000 lm.
10 - ADJUSTABLE LIGHT BEAM
Slide reflector provides adjustment of the angle of the light beam from 6 to 35 degrees with 70 degrees of constant glow. The lock screw allows to lock the reflector in a chosen position.
11 - TEMPERATURE MANAGEMENT SYSTEM
The head is equipped with active and passive thermal management system. Electronics installed inside the head controls the temperature of the LED panel with a sensor installed directly on the panel, securing the LEDs from overheating and damage. In extreme situations electronics actively restricts the power of the head, reducing the amount of generated light.
12 - POWER ADJUSTMENT
With the built in the head PIEZO push button switch, the user has the possibility of 3-stage power regulation: 100%-50%-20%. This provides adjustment of the amount of light to the underwater conditions without losing contact with the light while reducing power. Optional 3 power modes can be extended by an additional OFF mode (100%-50%-20%-OFF).

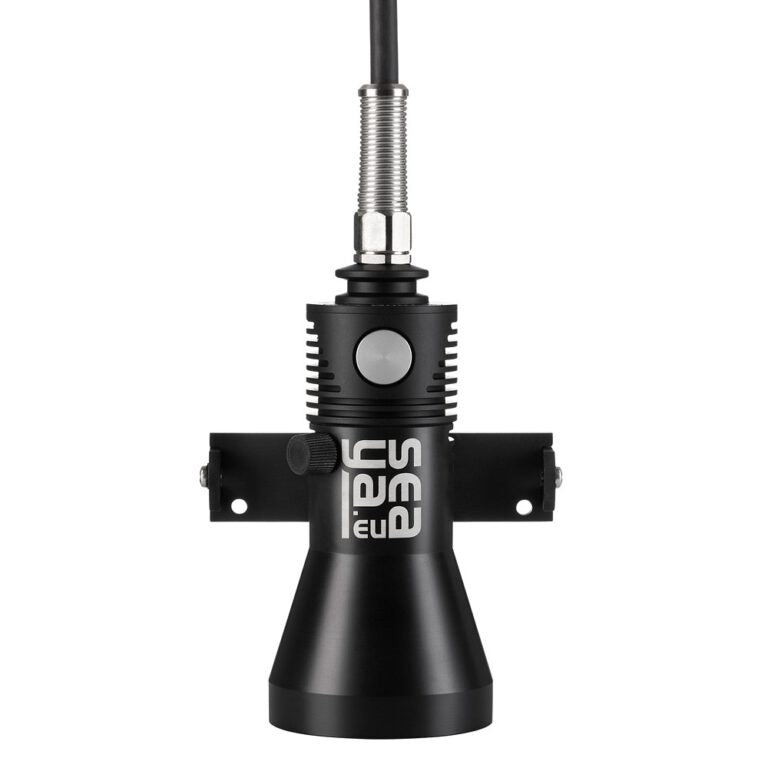

13 - MOUNTING ON CARABINER
Housing design provides the possibility of mounting carabiner or loop in the back of the head to make it easier to hang up on harness.

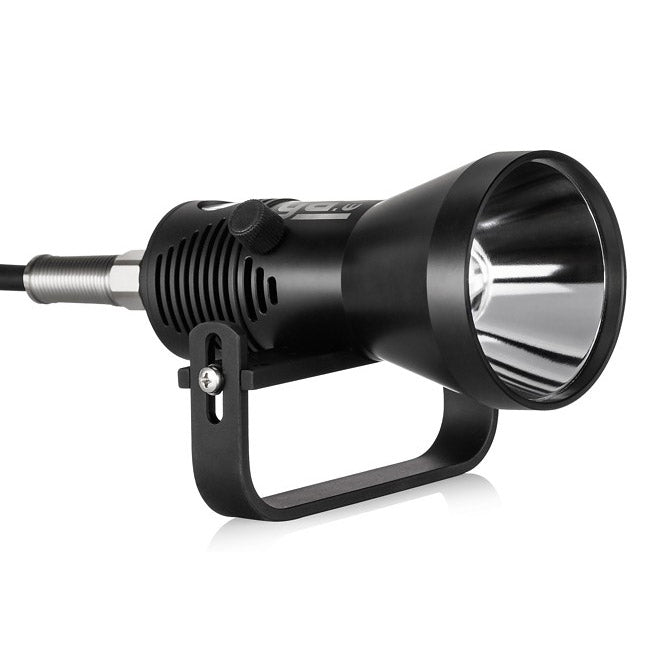

14 - TYPE OF HANDLE
The possibility of use of two types of handles. Goodman handle with adjustable height handle or Mini-G tailored to stick to your hand.
TECHNICAL DATA
| Light source: | 1x CREE® XHP50 |
| Power: | 19 W |
| Luminance: | max. 2000 lm |
| Colour temperature: | 5700 °K |
| Light distribution angle: | 6°-35° + constant glow 70° |
| Modes: | 100%-50%-20% /-OFF* |
| Max. operating depth: | 150 m |
| E/O cord length: | 65 cm or according to customer reqiurements |
| Head dimensions (length x diameter): | 150 mm x 75/50 mm |
| Colour: | black |
| Made of: | anodized aluminum, Delrin® |
| Type of handle: | Goodman or Mini-G |
POWER
| Battery pack capacity | 13.8 Ah | 24.15 Ah | 41.4 Ah | |
| Charging time | 4.5 h** | 8 h** | 8.5 h*** | |
| Weight on the surface | 2.1 kg | 2.7 kg | 3.7 kg | |
| Weight in water | 0.8 kg | 1.1 kg | 1.5 kg |
* option: additional OFF mode
** charging time for SY-CHARGLI-4A charger
*** charging time for SY-CHARGLI-6A charger
Automatic charger for Li-Ion battery packs with compartment included.
